ScoriaDB Documentation (v0.2.0)

Quick links: GitHub

Full README

1. What is ScoriaDB?

ScoriaDB is an embeddable key‑value database written in pure Go.

It combines:

LSM‑tree engine (MemTable, SSTable, Leveled Compaction)
MVCC with Snapshot Isolation
Interactive transactions and atomic WriteBatch
Column Families (independent LSM trees inside a single database)
WiscKey‑style Value Log for large values (>64 bytes)
WAL + Manifest with fsync for crash durability
Group Commit – buffered writes with periodic fsync (4–5× faster durable writes)
Built‑in gRPC, REST, WebSocket, and CLI
JWT authentication with roles (admin, readwrite, readonly)

License: Apache 2.0

2. Benchmarks

Test environment: Intel Core i3-1215U (8 threads), NVMe SSD, Go 1.23+, Linux amd64.
Command: go test -bench=. -count=5 ./internal/engine ./pkg/scoria | benchstat

Operation	Value size	Time (ns/op)	Throughput (ops/s)
`engine.Put` (small)	16 B	~676	~1.48M
`engine.Put` (sync, no Group Commit)	16 B	~1,070	~935K
`engine.Put` (large, VLog)	4 KB	~4,785	~209K
`engine.Get` (hit, MemTable)	–	~140	~7.1M
`engine.Get` (miss)	–	~310	~3.2M
`engine.Scan` (10k keys)	–	~2.2 ms	~450 ops/s
Group Commit WAL (sequential)	~50 B	~95	~10.5M

Batch writes (WriteBatch of 100 items) give ~970,000 ops/s with full durability – fsync amortised.
Reads never stall – even under heavy concurrent writes (MVCC).

For more detailed benchmarks, see the full README.

3. Group Commit

Group Commit is a WAL optimization that batches multiple write operations and calls fsync periodically (default every 10 ms). This reduces the number of expensive disk syncs while preserving durability.

Mode	Latency (ns/op)	Throughput (ops/s)
Sync (fsync each op)	454	2,200,000
Group Commit (10ms)	94.9	10,500,000

Group Commit is already released and enabled by default in the server mode. It improves write throughput by 4–5× without sacrificing safety.

For technical details, see the Group Commit design document.

4. Comparison with Redis

ScoriaDB is not a Redis replacement – different niches. Redis: in‑memory cache. ScoriaDB: disk‑based, durable, embeddable KV.

Feature	ScoriaDB (embedded)	Redis CE (networked)
Deployment	Library or server	Separate server
Network overhead	none	~0.1–0.2 ms TCP
Read latency	~140 ns	~0.24–0.31 ms
Write latency (sync)	~750 ns	~0.45 ms (AOF everysec)
Persistence	full fsync	optional (RDB/AOF)
Transactions	ACID + Snapshot Isolation	none (pipelining)
MVCC	yes	no
Column Families	yes	no

5. Release Status

v0.2.0 – current stable (May 2026)

This release focuses on write performance, durability control, and documentation.

Feature / Improvement	Description
Group Commit in WAL	Buffered writes with periodic fsync (10 ms interval). Improves write throughput by 4–5× without sacrificing durability.
WAL group commit writer	Asynchronous flush loop + ticker, configurable interval.
Public API for WAL options	`OpenWALWithOptions` and `EngineOptions` allow enabling/disabling Group Commit.
Multi‑language documentation	Full gRPC examples and guides for Python, Java, C++ (see `docs/`).
Benchmark suite	Extended benchmarks for sync vs group commit, different value sizes.
Crash recovery tests	Validated durability with Group Commit enabled.

All core features from v0.1.0 remain (LSM, MVCC, transactions, Column Families, gRPC/REST/CLI, etc.). v0.2.0 is backward‑compatible.

6. Version Roadmap

Version	Focus	Key features	Planned release
v0.1.0	Initial stable	LSM, MVCC, ACID, Column Families, gRPC, CLI, basic GC	April 2026 ✅
v0.1.1	CLI & docs	Interactive shell commands (`create-cf`, `list-cf`, `whoami`, `stats`, history, export), Python/Java/C++ docs	May 2026 ✅
v0.2.0	Write performance	Group Commit (WAL), WAL options, crash recovery tests	May 2026 ✅
v0.2.1	Minor fixes & QoL	Windows/macOS CI, `admin delete-user`, `admin get-user`	June 2026
v0.3.0	Web UI & TTL	Alpine.js dashboard, TTL (time‑to‑live), lock‑free skip list	July 2026
v0.3.1	Web UI polish	Live updates, pagination, documentation in UI	August 2026
v0.4.0	Performance	Zero‑copy Value Log, automatic incremental GC, binary Manifest	Q4 2026
v1.0.0	Distributed mode	Raft replication, range sharding, distributed ACID transactions (2PC), native data structures (Sorted Sets, Lists, JSON indexes)	2027

Note: Versions with a ✅ are already released. The roadmap is subject to change based on feedback and contributor availability.

7. When to Use ScoriaDB

Use case	Why ScoriaDB
Embedded storage in Go services	Zero external dependencies, pure Go, easy `import`.
Edge / IoT devices	Lightweight, local storage + remote access via gRPC.
Microservices	One server – clients in any language (gRPC).
Log analysis (demo: Scorix)	Efficient prefix scans and aggregations.
Learning LSM / MVCC internals	Clean, readable source code.

Not recommended for:
Large‑scale distributed systems (no replication yet), extremely write‑heavy workloads (lock‑free MemTable planned for v0.3.0), full SQL queries.

8. Installation

As a Go library

go get github.com/f4ga/ScoriaDB@v0.2.0

As a standalone server

git clone https://github.com/f4ga/ScoriaDB.git
cd ScoriaDB
go build -o scoria-server ./cmd/server
go build -o scoria-cli ./cmd/cli

Using Docker

docker compose -f deployments/docker-compose.yml up --build

9. Server Mode: gRPC, REST, CLI

Run the server:

./scoria-server --db-path ./data --grpc-port 50051 --http-port 8080

Interactive Shell

Start the interactive shell:

./scoria-cli --token $TOKEN shell

Basic Commands

Command	Description	Example
`get <key>`	Get value	`get user:1`
`set <key> <value>`	Set value	`set user:1 Alice`
`del <key>`	Delete key	`del user:1`
`scan [prefix]`	Scan keys by prefix	`scan user:`
`export <prefix> <file>`	Export scan results to file	`export user: ./users.txt`

Column Family Management

Command	Description	Example
`use <cf>`	Switch current Column Family	`use logs`
`cf`	Show current Column Family	`cf`
`list-cf`	List all Column Families	`list-cf`
`create-cf <name>`	Create a new Column Family	`create-cf logs`
`delete-cf <name>`	Delete a Column Family	`delete-cf logs`

Informational Commands

Command	Description	Example
`whoami`	Show current user and roles	`whoami`
`stats`	Show key statistics for current CF	`stats`
`history`	Show command history	`history`
`last-error`	Show last error	`last-error`
`clear`	Clear screen	`clear`

Admin Commands

Command	Description	Example
`admin change-password <user> <pass>`	Change user password	`admin change-password admin newpass`
`admin user-add <user> <pass> [--roles=...]`	Create new user	`admin user-add john 123 --roles=readwrite`
`admin list-users`	List all users	`admin list-users`

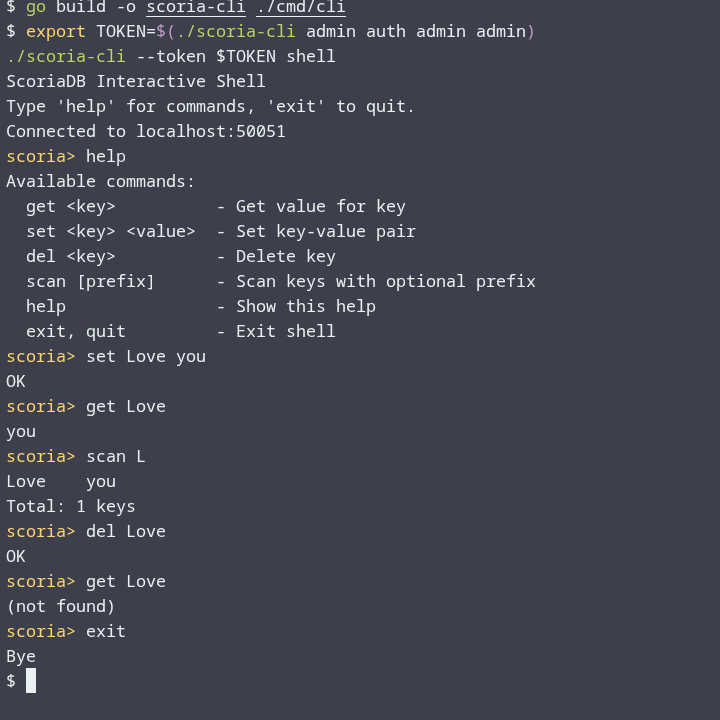

Demo: CLI

ScoriaDB CLI demo

Example Session

scoria> whoami
Username: admin
Roles: admin

scoria> create-cf logs
Column family 'logs' created

scoria> use logs
Switched to column family: logs

scoria> set hello world
OK

scoria> get hello
world

scoria> use default
Switched to column family: default

scoria> scan
Total: 2 keys
  hello → world
  user:1 → Alice

scoria> exit
Goodbye!

REST API

Method	Endpoint	Description
GET	`/api/v1/kv/{key}`	Get value
PUT	`/api/v1/kv/{key}`	Set value (JSON: `{"value":"..."}`)
DELETE	`/api/v1/kv/{key}`	Delete key
POST	`/api/v1/kv/scan`	Scan (JSON: `{"prefix":"..."}`)
POST	`/api/v1/auth/login`	Login (JSON: `{"username":"...","password":"..."}`)

Examples:

# Read
curl http://localhost:8080/api/v1/kv/hello

# Write
curl -X PUT http://localhost:8080/api/v1/kv/hello -d '{"value":"world"}'

# Scan
curl -X POST http://localhost:8080/api/v1/kv/scan -d '{"prefix":"user"}'

# Login
curl -X POST http://localhost:8080/api/v1/auth/login -d '{"username":"admin","password":"admin"}'

gRPC API

Proto file: proto/scoriadb.proto

Go client example:

conn, _ := grpc.NewClient("localhost:50051", grpc.WithTransportCredentials(insecure.NewCredentials()))
client := proto.NewScoriaDBClient(conn)
resp, _ := client.Get(ctx, &proto.GetRequest{Key: []byte("hello")})

When to use server mode:
You need remote access from multiple clients, different programming languages, or a standalone database process.

10. Authentication and Authorization

ScoriaDB uses JWT tokens with roles:

Role	Permissions
`admin`	All operations (including user management)
`readwrite`	Put, Delete, Scan (no user management)
`readonly`	Get, Scan only

Commands:

# Get token (admin/admin on first start)
TOKEN=$(./scoria-cli admin auth admin admin)

# Create a user (admin only)
./scoria-cli admin user-add john mypass --roles readwrite

# Use token
./scoria-cli --token $TOKEN set hello world

When to use authentication:
When the server is exposed over a network and you need access control.

⚠️ Important: On first start, the database creates an admin/admin user. Change the password immediately in production.

11. Garbage Collection (Value Log)

The Value Log (.vlog file) grows over time even after keys are deleted. Run manual GC to reclaim disk space:

./scoria-cli admin gc

When to run GC:
When disk usage is high and you can tolerate a short write pause (GC stops writes during execution).

Note: Automatic incremental GC is planned for v0.4.0.

12. Monitoring (Prometheus)

The HTTP server exposes a /metrics endpoint on port 8080.

Metric	Type	Description
`scoria_writes_total`	Counter	Total writes per CF
`scoria_reads_total`	Counter	Total reads per CF
`scoria_memtable_size_bytes`	Gauge	Current MemTable size
`scoria_level_files`	Gauge	SSTable files per level
`scoria_compaction_duration_seconds`	Histogram	Compaction duration
`scoria_stall_count`	Counter	Write stalls due to L0 overflow

curl http://localhost:8080/metrics

When to use: Production monitoring with Prometheus + Grafana.

13. Known Limitations (v0.2.0)

Limitation	Planned fix
MemTable uses B‑tree with global mutex	lock‑free skip list – v0.3.0
Manifest stored as JSON (slow)	binary format – v0.4.0
Value Log GC is manual only	automatic incremental GC – v0.4.0
Transactions work only on `default` CF	v0.3.0
No true zero‑copy (data copied from mmap)	v0.4.0
No distributed replication	Raft – v1.0.0

Note: Group Commit is already released in v0.2.0. Check the roadmap for upcoming improvements.

14. Stress Testing

Run all stress tests (concurrent writes, mixed load, transaction conflicts, compaction):

go test -tags=stress -race -v ./tests \
  -run 'TestConcurrentPuts|TestConcurrentReadWrite|TestTransactionConflicts|TestCompactionDuringWrites' \
  -timeout 3m

Results on Intel i3-1215U (8 threads):

Test	Duration	Status
`TestConcurrentPuts` (1M writes)	≈44 s	✅
`TestConcurrentReadWrite` (30 s mixed)	30 s	✅
`TestTransactionConflicts`	0.33 s	✅
`TestCompactionDuringWrites` (200k writes)	7.5 s	✅

When to run stress tests: After engine modifications, before production deployment, or to verify stability on different hardware.

15. Contributing

We welcome contributions! See CONTRIBUTING.md.

Help needed with:

Windows / macOS testing
Automatic GC implementation
Lock‑free skip list for MemTable
Web UI development (v0.3.0)
Documentation and translations

Report bugs: GitHub Issues
Contact: scoriadb@gmail.com

Go (Embedded API)

Note: This is the native Go API. Use it for maximum performance without network overhead.

16. Quick Start (Go)

import "github.com/f4ga/ScoriaDB/pkg/scoria"

func main() {
    // Open (or create) the database in "./data"
    db, err := scoria.NewScoriaDB("./data")
    if err != nil {
        panic(err)
    }
    defer db.Close()

    // Write
    db.Put([]byte("hello"), []byte("world"))

    // Read
    val, _ := db.Get([]byte("hello"))
    println(string(val)) // "world"
}

When to use embedded mode: Building Go binaries that need local persistent storage without a separate database process.

17. Core Operations in Go

All operations work on the default Column Family (default).

Operation	Method	Returns
Write	`Put(key, value []byte) error`	error
Read	`Get(key []byte) ([]byte, error)`	value (nil if not found)
Delete	`Delete(key []byte) error`	error
Scan	`Scan(prefix []byte) Iterator`	iterator over keys with prefix

Example:

db.Put([]byte("user:1"), []byte("Alice"))
val, _ := db.Get([]byte("user:1"))
db.Delete([]byte("user:1"))

iter := db.Scan([]byte("user:"))
defer iter.Close()
for iter.Next() {
    fmt.Printf("%s → %s\n", iter.Key(), iter.Value())
}

18. Column Families in Go

A Column Family (CF) is an independent LSM tree.

Method	Description
`CreateCF(name string) error`	Create a new CF
`DropCF(name string) error`	Delete CF and its files
`ListCFs() []string`	Return all CF names
`PutCF(cf string, key, value []byte) error`	Write to a specific CF
`GetCF(cf string, key []byte) ([]byte, error)`	Read from a CF
`DeleteCF(cf string, key []byte) error`	Delete from a CF
`ScanCF(cf string, prefix []byte) Iterator`	Scan within a CF

Example:

db.CreateCF("logs")
db.PutCF("logs", []byte("2025-01-01"), []byte("started"))
val, _ := db.GetCF("logs", []byte("2025-01-01"))

When to use Column Families: Different data types need different compaction or retention settings.

19. Atomic WriteBatch in Go

A Batch groups operations that must be applied atomically – all or nothing.

batch := db.NewBatch()
batch.AddPut([]byte("a"), []byte("1"))
batch.AddPut([]byte("b"), []byte("2"))
batch.AddDelete([]byte("c"))
err := batch.Commit()

For a specific CF:

batch := db.NewBatchForCF("myCF")
batch.AddPut([]byte("x"), []byte("y"))
batch.Commit()

When to use WriteBatch: Bulk updates, cross‑CF atomic updates, or reducing fsync overhead.

20. Transactions in Go

Interactive transactions provide a snapshot at Begin().
If any read or written key was modified by another transaction after Begin(), Commit() returns ErrConflict. Retry the transaction.

tx := db.NewTransaction()
defer tx.Rollback()

val, _ := tx.Get([]byte("balance"))
// ... modify logic ...
tx.Put([]byte("balance"), newBalance)
tx.Delete([]byte("temp"))

if err := tx.Commit(); err == scoria.ErrConflict {
    // conflict – retry the entire transaction
} else if err != nil {
    // other error
}

When to use transactions: Consistent reads across multiple keys with conflict detection.

Note: v0.2.0 transactions work on arbitrary Column Families (not just default).

Other Languages (gRPC Clients)

Note: For languages other than Go, you must use the gRPC API. Start the ScoriaDB server first (./scoria-server), then run the client examples below. All clients use the same protocol defined in proto/scoriadb.proto.

21. Multi‑Language Clients

Language	Documentation	Example Code
Python	python-doc.md	example.py
Java	java-doc.md	example.java
C++	cpp-doc.md	example.cpp

Python

# Quick example – see python-doc.md for details
import grpc
import scoriadb_pb2
import scoriadb_pb2_grpc

channel = grpc.insecure_channel('localhost:50051')
stub = scoriadb_pb2_grpc.ScoriaDBStub(channel)

auth = stub.Authenticate(scoriadb_pb2.AuthRequest(username="admin", password="admin"))
metadata = (('authorization', f'Bearer {auth.jwt_token}'),)

stub.Put(scoriadb_pb2.PutRequest(key=b"hello", value=b"world"), metadata=metadata)
resp = stub.Get(scoriadb_pb2.GetRequest(key=b"hello"), metadata=metadata)
print(resp.value)  # b'world'

Java

// Quick example – see java-doc.md for details
ManagedChannel channel = ManagedChannelBuilder.forAddress("localhost", 50051)
        .usePlaintext()
        .build();
ScoriaDBGrpc.ScoriaDBBlockingStub stub = ScoriaDBGrpc.newBlockingStub(channel);

AuthResponse auth = stub.authenticate(AuthRequest.newBuilder()
        .setUsername("admin")
        .setPassword("admin")
        .build());

Metadata metadata = new Metadata();
metadata.put(Metadata.Key.of("authorization", Metadata.ASCII_STRING_MARSHALLER),
        "Bearer " + auth.getJwtToken());
stub = stub.withInterceptors(MetadataUtils.newAttachHeadersInterceptor(metadata));

stub.put(PutRequest.newBuilder()
        .setKey(ByteString.copyFromUtf8("hello"))
        .setValue(ByteString.copyFromUtf8("world"))
        .build());

GetResponse res = stub.get(GetRequest.newBuilder()
        .setKey(ByteString.copyFromUtf8("hello"))
        .build());
System.out.println(res.getValue().toStringUtf8());

C++

// Quick example – see cpp-doc.md for details
auto channel = grpc::CreateChannel("localhost:50051", grpc::InsecureChannelCredentials());
auto stub = scoriadb::ScoriaDB::NewStub(channel);

scoriadb::AuthRequest auth_req;
auth_req.set_username("admin");
auth_req.set_password("admin");
scoriadb::AuthResponse auth_resp;
stub->Authenticate(&context, auth_req, &auth_resp);
std::string token = auth_resp.jwt_token();

// Add token to metadata and use Put/Get...

Thank you for using ScoriaDB. Star the repo if you like it!

For the most up‑to‑date information, see the full README.

This site is open source. Improve this page.

ScoriaDB

ScoriaDB Documentation (v0.2.0)

Table of Contents

Core Documentation

Go (Embedded API)

Other Languages (gRPC Clients)

1. What is ScoriaDB?

2. Benchmarks

3. Group Commit

4. Comparison with Redis

5. Release Status

v0.2.0 – current stable (May 2026)

6. Version Roadmap

7. When to Use ScoriaDB

8. Installation

As a Go library

As a standalone server

Using Docker

9. Server Mode: gRPC, REST, CLI

Interactive Shell

Basic Commands

Column Family Management

Informational Commands

Admin Commands

Demo: CLI

Example Session

REST API

gRPC API

10. Authentication and Authorization

11. Garbage Collection (Value Log)

12. Monitoring (Prometheus)

13. Known Limitations (v0.2.0)

14. Stress Testing

15. Contributing

Go (Embedded API)

16. Quick Start (Go)

17. Core Operations in Go

18. Column Families in Go

19. Atomic WriteBatch in Go

20. Transactions in Go

Other Languages (gRPC Clients)

21. Multi‑Language Clients

Python

Java

C++
